Diamondback Hatch 2 - 2021
- Frame: Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)
- Fork: SR Suntour XCE-28 100mm of Travel with Pre-Load Adjuster, IS Disc mounts
- Headset: 1-1/8 Semi Integrated,Cartridge Bearing
- Cranks: Shimano Tourney TY301, 42/34/24t
- Bottom Bracket: BSA, Sealed Cartridge Bearing
- Front Derailleur: Shimano Tourney TY500, Dual Pull

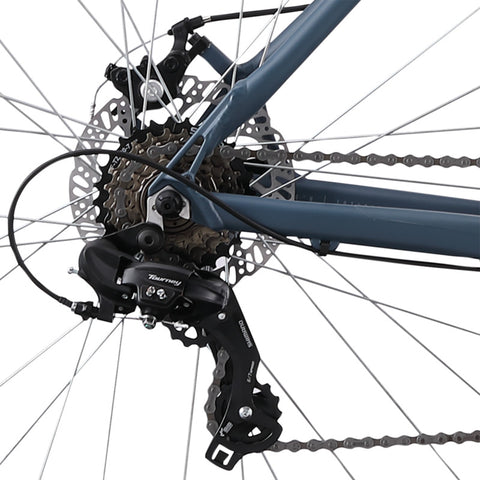

- Rear Derailleur: Shimano Tourney TY300
- Shifter: Shimano EF500 3x7 Speed EZ-Fire Shifter
- Cogset (Cassette/Freewheel): Shimano MFTZ500 14-28 Tooth Freewheel
- Chain: KMX Z-7
- Front Hub: Formula DC-19 Aluminum 6 bolt Disc, Quick Release
- Rear Hub: Formula DC-31, Aluminum 6 bolt Disc, Quick Release
- Spokes: Steel J-Bend
- Rims: Aluminum MTB DDM-2 Double Wall, 32 hole
- Tires: Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25"
- Brakes: Tektro M280 IS Post Mount, Mechanical Disc w 160mm Rotors F/R
- Brake Levers: Shimano EF500 with 2-finger, Reach Adjustable Levers
- Pedals: Wellgo Plastic Body Platform
- Handlebar: Aluminum 31.8mm Bar, 25mm Rise
- Grips: MTB Grip
- Stem: Aluminum MTB 31.8 Bar Bore Stem
- Seat: MTB Saddle
- Seatpost: Aluminum 27.2 Post with 15mm Offset
- Extras: Rack, Fender and Bottle Mounts
